Basic product information:产品参数
质粒类型：荧光蛋白报告载体
启动子：CMV
克隆方法：多克隆位点，限制性内切酶
载体大小：4.7kb
载体抗性：Kanamycin (卡那霉素)
筛选标记：新霉素（Neomycin）
载体介绍

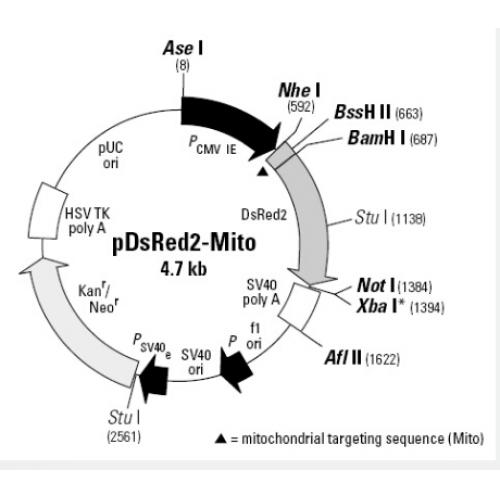

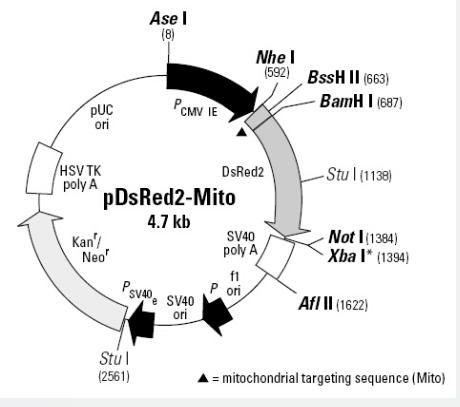

pDsRed2-Mito is a mammalian expression vector that encodes a fusion of Discosoma sp. red fluorescent protein (DsRed2) and the mitochondrial targeting sequence from subunit VIII of human cytochrome c oxidase (Mito;). The Mito sequence is fused to the 5'-end of DsRed2, a human codon-optimized DsRed variant that is engineered for faster maturation and lower nonspecific aggregation. The Mito sequence targets the Mito-DsRed2 fusion protein to the host cell’s mitochondria.
To drive expression of Mito-DsRed2, this vector contains the immmediate early promoter of cytomegalovirus (PCMV IE ). SV40 polyadenylation signals downstream of the DsRed2 gene direct proper processing of the 3'-end of the Mito-DsRed2 mRNA. This vector also contains an SV40 origin for replication in any mammalian cell line that expresses the SV40 T-antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin resistance cassette—consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the herpes simplex virus thymidine kinase (HSV TK poly A) gene—allow stably transfected eukaryotic cells to be selected using G418. A bacterial promoter (P) upstream of this cassette drives expression of the gene encoding kanamycin resistance in E. coli.
pDsRed2-Mito is designed for fluorescent labeling of mitochondria. The vector can be introduced into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (6). The Mito-DsRed2 fusion (excitation/emission maxima: 558 nm/ 583 nm) can be detected by fluorescence microscopy and by flow cytometry.To detect Mito- DsRed2-expressing cells by flow cytometry, use the instrument’s argon-ion laser to excite the fluorophore at 488 nm and the FL-2 channel to detect the fluorophore’s emission at 583 nm.
Other technical information
For more information, please download and refer to the product manual。
